DUOYI DY5750B Gas Detector Refrigeration Gas Leak Detector CFC HFC Halogen Gas Refrigerant Leak Detector Air Conditioning R410a
DUOYI DY5750B Gas Detector Refrigeration Gas Leak Detector CFC HFC Halogen Gas Refrigerant Leak Detector Air Conditioning R410a
DUOYI DY5750B Refrigeration Leak Detector Car Gas Detector Electronics Air Conditioning Freon Halogen Leakage Detection Tools

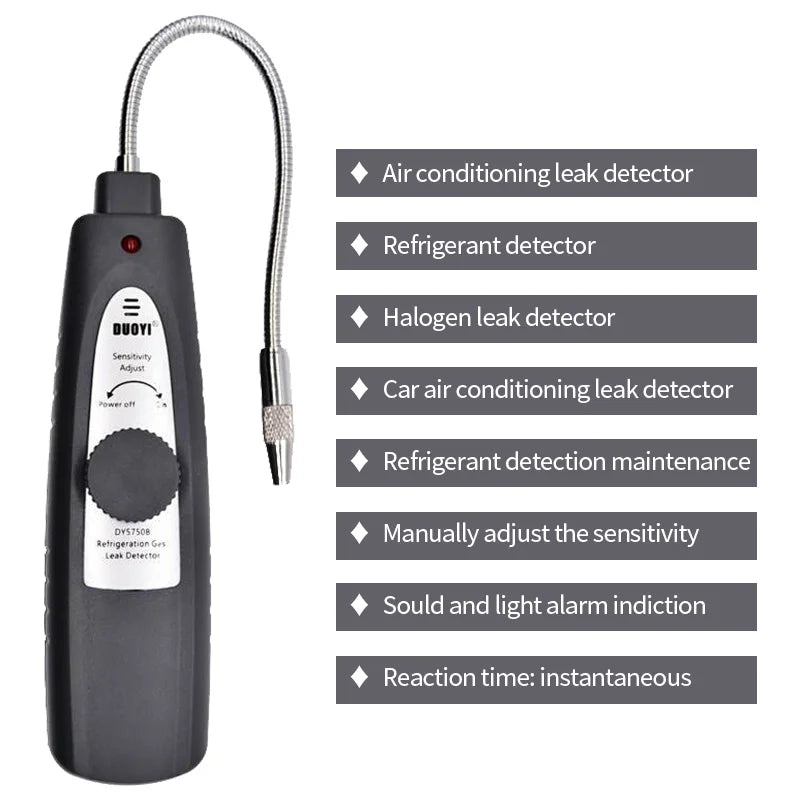

This detector is a portable and reliable leak detector for the detect of leak in air-conditioners and refrigerant systems.It features with a small size, high sensitivity and flexible handle to detect the leak at any place.
Features
1.Detect all halogen refrigerants.
2.Sensitive manual adjusting function makes it convenient to use.
3.Well-designed and exquisite circuit.
4.Sound and light alarming indicator.
5.Excellent sensor to detect subtle leak halogen gases.
6.Portable design with suitcase.
7.Flexible long handle to detect leak source at any place.
Sensitivity Adjustment Method
This machine can adjust sensitivity to achieve more accurate detection
● Start the machine first
● Tick sound
● Rotate to the right
● Hear continuous whistling
● Then turn to the left
● Stop the adjustment when the howling just improves to tick
The sensitivity is the best at this time
Application Range
1.Detect leaks in air-conditioner and other refrigerant systems. It will respond all halogen gases (including Ch lorine and Florine)
which include but are not limited to:
CFS ( e.g.R1,R11,R500,R503 etc )
HCFCs (e.g.R22,R123,R124,R502 etc )
HCFCs (e.g.R134a,R404a,R125,etc )
2.Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the homogenate carrier gas).
3.Detect SF-6 in high voltage circuit breakers.
4.Detect most gases including Chlorine,Fluorine and Bromine (halogen gases).
5.Detect cleaning agents used in dry cleaning applications such as perchloroethyl.
Application scenarios
Home air conditioner.
Life refrigerator.
Car Air Conditioner.
Refrigerant recovery machine.
Fire extinguishing system.
High voltage switch.
Detection gas:
-
R134A、R22、R123、R407C、R410A.R22、134a、R404A
Detection of halogen gases (fluorine, chlorine, bromine elements)Fluorine, chlorine, bromine, iodine, astatine, ishida (Ts).
-
Specification:
Power supply：DC6V size 7 Alkaline batteries(4)（not include）.
Maximum sensitivity：14 grams/year.
size：170mm*45mm*43mm.
Warm-up time：6 seconds.
Battery life expectancy：About 50 hours.
Reaction time：Instantaneous.
Package Included:
1PC X DY5750B Tester (Battery not iincluded).
1PC X Carry bag.
1pc X User's Manual(In English).
DY5750B PARAMETER SPECIFICATIONS
