DUOYI Automotive Short Open Finder Tester
DUOYI Automotive Short Open Finder Tester
Couldn't load pickup availability

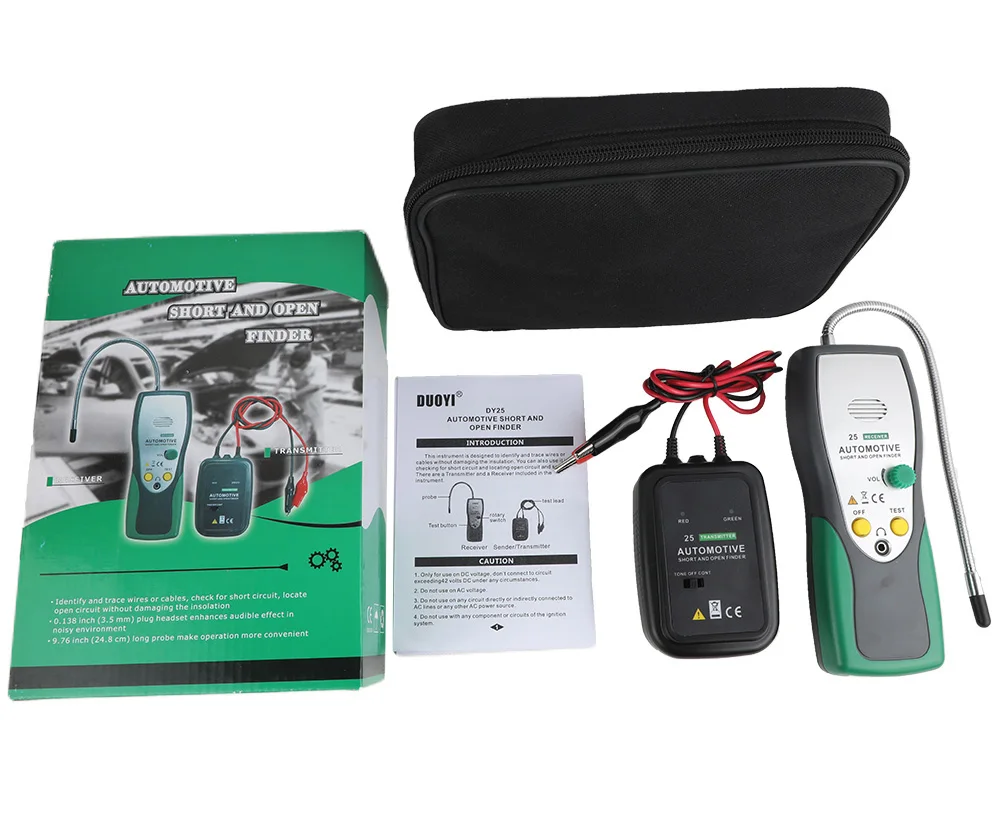

PACKING LIST:
DY25 Sender 1 pcs
DY25 Receiver 1 pcs
User manual 1 pcs(in English)
Oxford handbag 1 pcs
Automotive Short Cable Tracker&Open Wire Finder Less Than 42V DC Find Car Short Circuit Wire
Specification
Multi-function circuit tester
Easily solve your circuit problems
Identify and track lines , find and determine shorts and break points
3 . 5MM headphone jack increases the listening effect in noisy environment

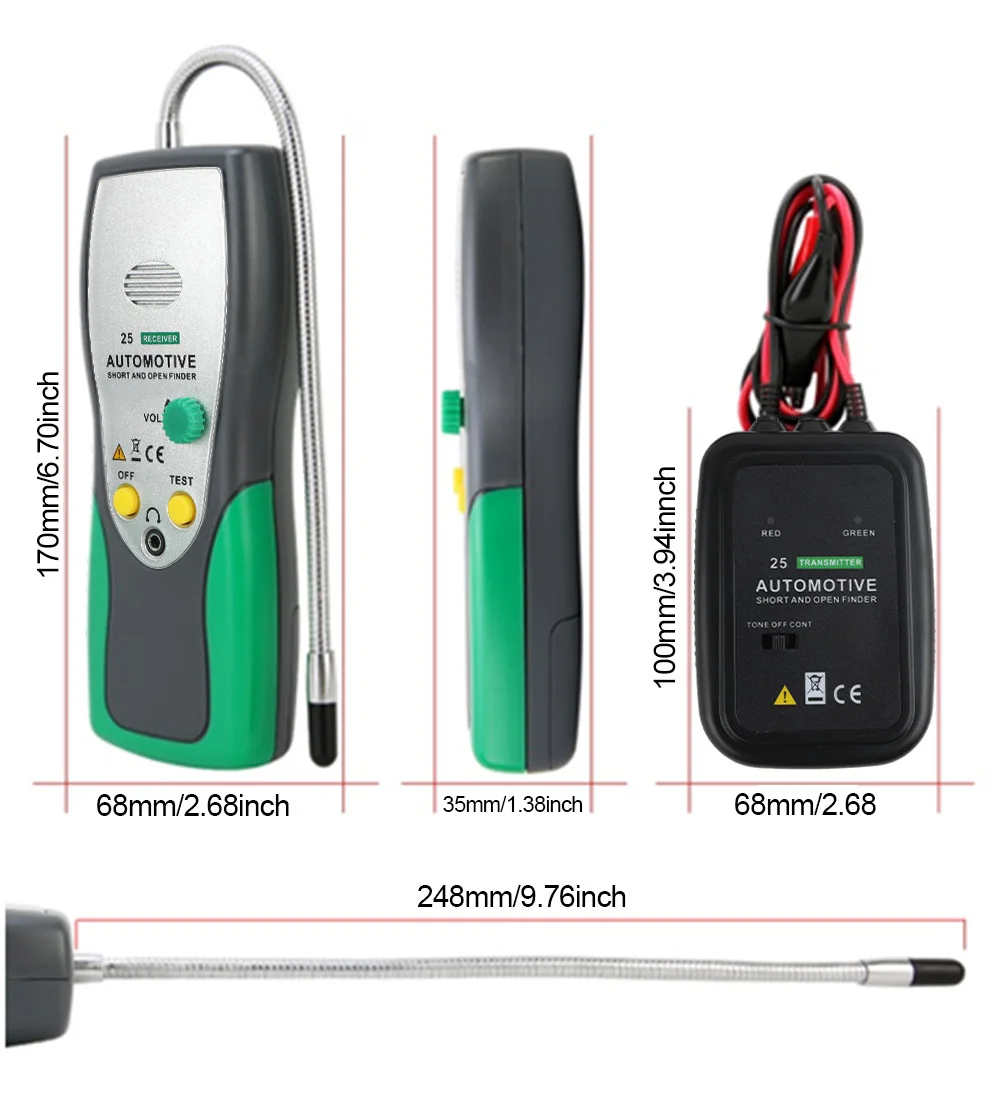

248 MM long probe hose is more convenient to operate
Function
Flexible probe made of 248mm steel wire
Highly sensitive probe
The tester uses advanced sensors for high sensitivity and fast response
Quickly find circuit problems with high precision
Beep alarm
![DY25_04](https://ae01.alicdn.com/kf/H0b1f88ca45b240b6bc4fb738b8bc92c7B.jpg)
LAUNCHER
With two modes can be choose to easily solve circuit problems
![DY25_05](https://ae01.alicdn.com/kf/H5f258fd94ec1455a89f1acbc98393756Y.jpg)
Pull the transmitters open key to Cable Tracking /Find the location of the breakpointcable identication At this time the reLED of the transmitter is on . f the red LED is not lit , check the powerconnection
( Please refer to the manual for the detailed measurement method )
Mode : CONT ( Find short circuit)
Pull the transmitters open key to the " find short positiorAt this point , the green LED of the transmitter is on . If the greenLED is not lit , check the power connection
( Please refer to the manual for detailed measurement methods)
![DY25_06](https://ae01.alicdn.com/kf/H80a9c167c6224267a4ad18676f4fd153P.jpg)

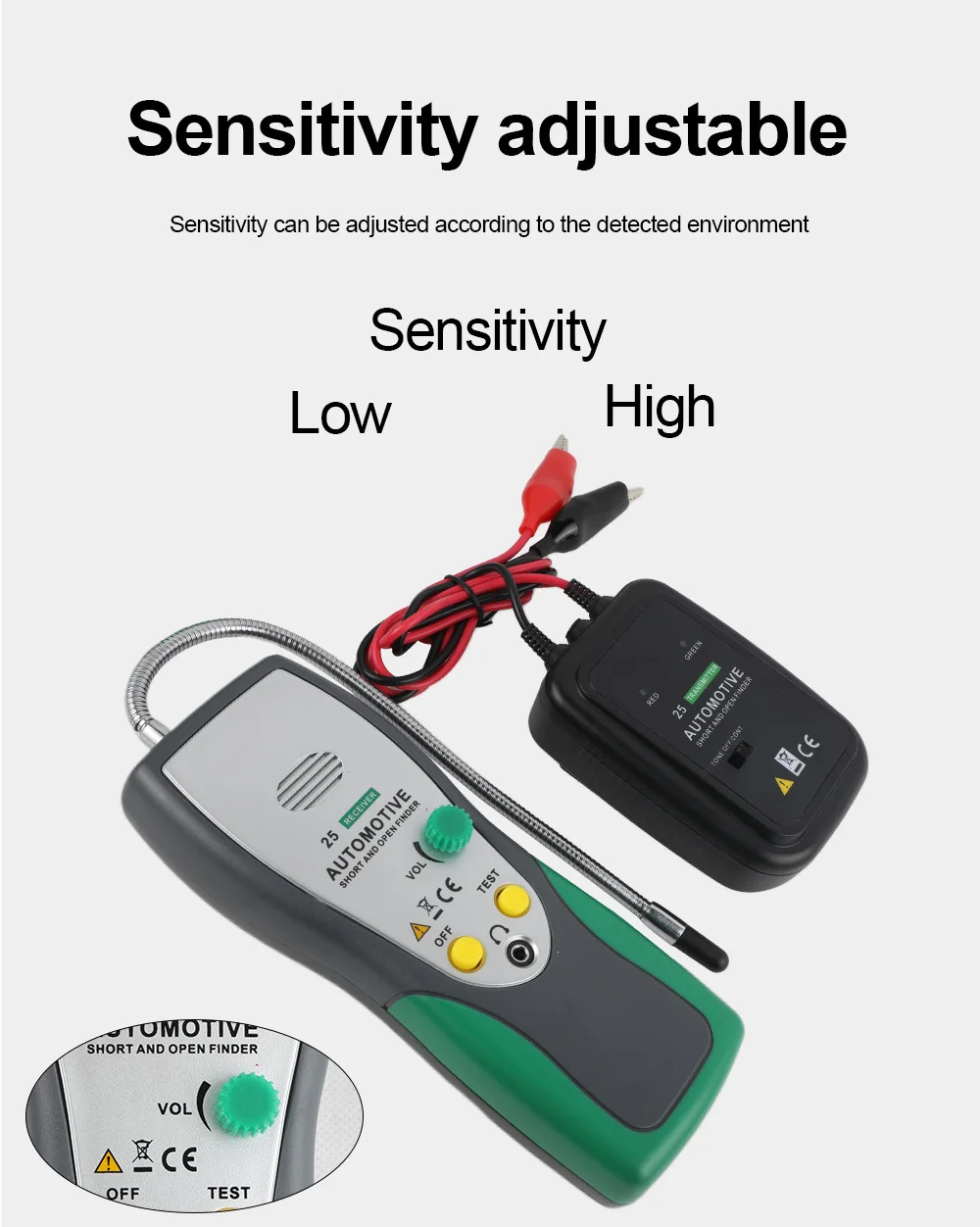

Sensitivity adjustable
Sensitivity can be adjusted according to the detected environment
![DY25_07](https://ae01.alicdn.com/kf/H535a72da146742679881adcd58e600c6R.jpg)

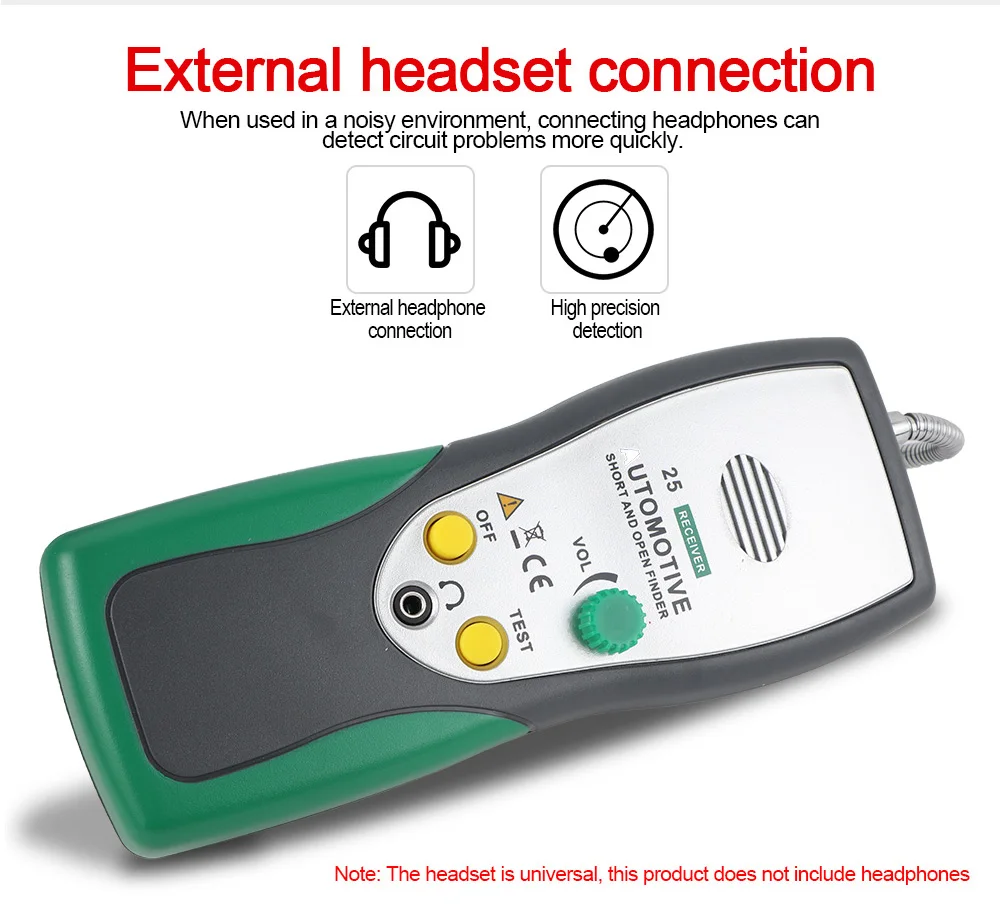

External headset connection
When used in a noisy environment , connecting headphones candetect circuit problems more quickly
![DY25_08](https://ae01.alicdn.com/kf/He9f395290430441ea0bf23fd6be1784ca.jpg)

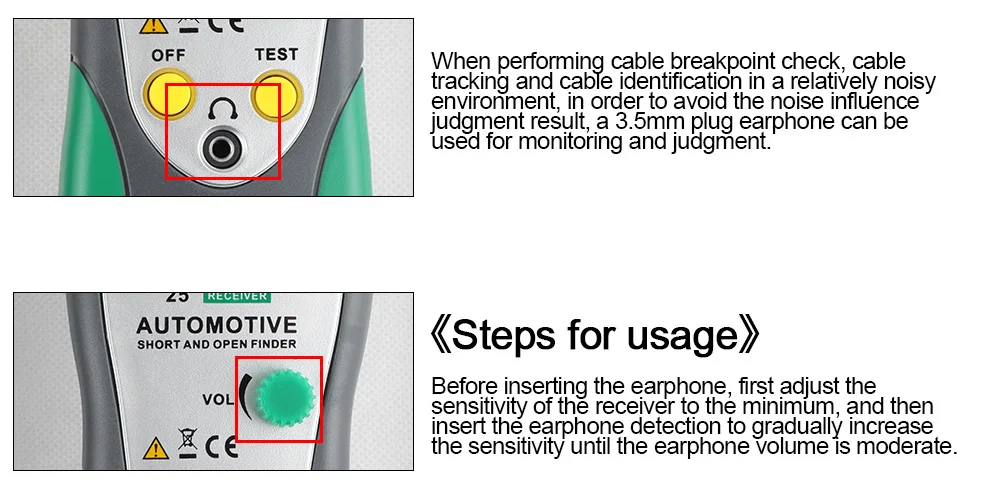

(steps for usage) Before inserting the earphone , first adjust thesensitivity of the receiver to the minimum , and theninsert the earphone detection to gradually increasethe sensitivity until the earphone volume Is moderate
![DY25_09](https://ae01.alicdn.com/kf/Hcbd4fe0d7908480ea4d4523aeeb98969j.jpg)
![DY25_10](https://ae01.alicdn.com/kf/Hc89fbe4aad7947048a0e69462058301ct.jpg)
![H8dc209676beb41f3929e9a691c45484dS](https://ae01.alicdn.com/kf/Hb21b17f0e8ef4962b8018fb9129e66e8s.jpg)
![DY25_11](https://ae01.alicdn.com/kf/H3b5d1f18334b4768ab10614a24dde5cfR.jpg)
![DY25_12](https://ae01.alicdn.com/kf/Haecb76a942bc4e348ef8aeae9f09e4a2f.jpg)
![DY25_13](https://ae01.alicdn.com/kf/He0dfda31a86846ceb44f05b668f8802d5.jpg)
Save your times and increase your income
Judge continuty of the cables or wires.
Track the cables or wires, and diagnose the break point
Receive the tone signal on the cables or wires(telephone line)
Indentify the state in the working telephone line (clear, ring, busy)
Send a single solid tone or a dual alternating tone to the object cables or wires.
![DY25_14](https://ae01.alicdn.com/kf/H203d22e9412d4e6cb462f7053e328b60B.jpg)
