DUOYI Ultrasonic Leak Detector Tool

DUOYI Ultrasonic Leak Detector Tool

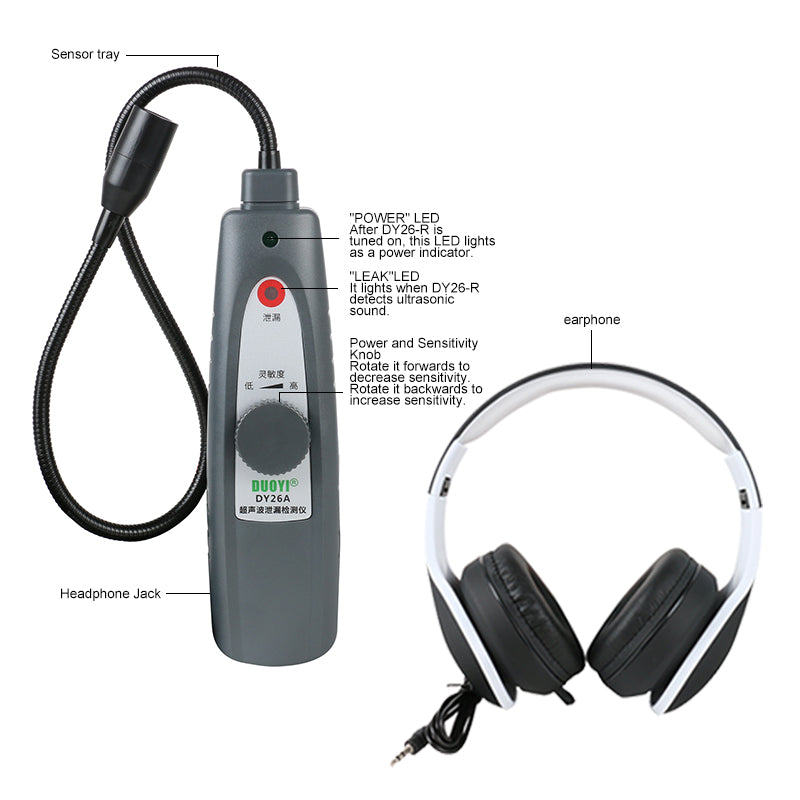

DUOYI DY26A Ultrasonic Leak Location Determine Meter



Dear friends, the following is the difference between DY26 and DY26A

DY26is suitable for testing leaks in confined spaces.


Instructions:
1. Put the transmitter DY26-T into a closed container to be tested.

2. Adjust the sensitivity of the receiver's DY26-R (you can adjust the sensitivity to the maximum at the beginning), and then hold the receiver DY26-R to slowly move along the measured object and listen to the sound from the headphones.

3. The closer to the point of the leak, the louder the headphones. (At this time you can adjust the sensitivity appropriately)


DY26Ais suitable for various leaks and has a 420mm probe.


Instructions:
1. Adjust the sensitivity of DY26A, hold DY26A slowly moving around the measured object,

2. The closer to the point of the leak, the louder the sound from the headphones.

If you are still not sure which one is better, you can consult the seller. Leave me a message. I will reply you as soon as possible.


DY26A is designed to locate leaks in pressure and vacuum system.
It can be used to detect and locate the source of the ultrasonic emission generated by gas or liquid f1owing through a small restrictive opening.
lt uses the advanced ultrasonic sensing technique and features small size, light weight;reliable detection, easy use and utility.

Features:

1. Sense pressurized leaks, detects electrical arcing, and finds falling solenoids, valves and bearings .

2. Comes with a transmitter that emits an ultrasonic frequency to help locate leaaks that are not pressurized.Enough to emit frequencies the  detector can pick up.(Only DY26)

3. Detects any pressurized leaking gas, including chlorofluoro carbon(CFCs), hydrofluoro carbon(HFCs),nitrogen(Ni), carbon dioxide(CO2) and steam.

Specification:

Alarm Indication: The"LEAK" LED lights and the"ticking tone" increases in frequency.
Frequency Response: 40kHz ± 2kHz
Operating Condition: temperature:0°C - 40°C
Relative humidity: <80%
Battery: 9V, 6F22 or equivalent
Size: 171*43*38mm
Weight: about 240g


Note :
1.There are many factors involved in the ultrasonic leak detection, such as the pressure within the vessel under test,hole shape, hole size, temperature etc. In some cases, the ultrasonic sound caused by leak is very weak,so you should set the DY26A's sensitivity to the highest level at the beginning of leak detection.

2.If the detected ultrasonic sound is too intense so that it is impossible to pinpoint the leak because the" ticking tone"is too high in frequency, you should decrease the sensitivity with the sensitivity knob.

3.In noisy environments, you can decrease the sensitivity appropriately to exclude the disturbance caused bynoise.

4.When DY26A detects ultrasonic sound, move its probe around the suspected leak to determinewhether the detected ultrasonic sound is from the suspected leak or from other areas.

5.Because ultrasonic sound attenuates rapidly when it travels over distance, move the probe of DY26Aas close as possible to the suspected leak, remember to decrease the sensitivity if necessary.During location, move the probe slowly.


360-degree detecting a leak
ULTTRASONIC LEAKDETECTOR
Highly sensitive sensor / sound and light double alarm / sensitivityadjustable / headphone connection

Your help with theauto repair

Scope of application

Automotive air conditioning compression system testing
Wheel , water tank , sealed space leak detection
Automobile brake system detection Bearing system . Bearingand lubrication testing
Liquefied gas tank truck , refrigerated truck , tank truck , cargo box ,welding pass , door , leak detection
Ultrasonic sealing non-breaking test
Train , motor car , high-speed rail door and window seal detection
cab wind detectionWind noise detection, electrical railway contact network detection


Sound and lightdouble alarm

The instrument has indicator light andaccompanying alarm sound ,
double alarmadjustable sensitivity ,
sensitivemeasurement ,
fast response

Pipeline leak detection
Tire leak detection
Door and window seal detection
Refrigeration equipmentleak detection

Sensitivity adjustable
High and low adjustment according to thedetected environment

Version Comparison
Choose The Right Instrument For You

High Sensitivity Sensor
Advanced high quality sensor with high sensitivityand fast response for more stable measurement

Highly sensitive and quick to find the leak
Sound And Light Double Alarm
When the leak is detected , the LED indicator lights up ,while the headset emits " Ta Ta Ta " sound the closerthe probe is to the leak , the faster the frequency of theheadset sound , the higher the volume

If you are outside, hold the DY26A along the object to measure the leak, you can find the leak location
If you are in a sealed container, you should check if the container is leaking. Choose DY26
